10.4inch Intel J1900 Fanless Industrial Touch panel pc 2*RJ45
Features
1. 12-inch Industrial panel with 1024*768 resolution
2. 10points PCAP touch screen with 3mm tempered glass
3. Quad-core Intel J1900 / Intel I3 / I5 / I7 processor optional
4. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0GHz |
| Memory | 4GB-8GB |
| Storage | 64G SSD(up to 1TB) |
| Operation System | Windows 7/8/10 OS(trial version) |
| LCD Panel Characteristics | Screen Size | 12’’ Lcd Panel |
| Touchscreen Type | Capacitive touch screen / Resistive touch option |
| Resolution | 1024(H)x768(V) |
| Aspect Ratio | 4:3 |
| Brightness | 250cd/m2 |
| Contrast Ratio | 500:1 |
| Response Time | 10 msec |
| I/O Interface | COM | 1*RS232(RS485/RS422 optional) |
| USB | 4xUSB2.0 |
| LAN | 2xRJ45, 10/100/1000 Mbps |
| HDMI | yes |
| VGA | 1xVGA |
| Function | Touch |
| Optional | RFID/ NFC card reader |
| 8-36V wide range voltage |
| Brightness control button |
| 1000nits High Brightness for sunlight readable |
| Front waterproof / Full sealed Waterproof |
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption |
| Accessories | 8A Power Adapter with cable |
| Working Temperature | -20~70° C |
| Other Information | Material | Aluminum+Metal frame |
| Color | Black/Silver/White |
| Mounting | VESA mount / Embedded |
| Certificates | CE/ RoHS / FCC |

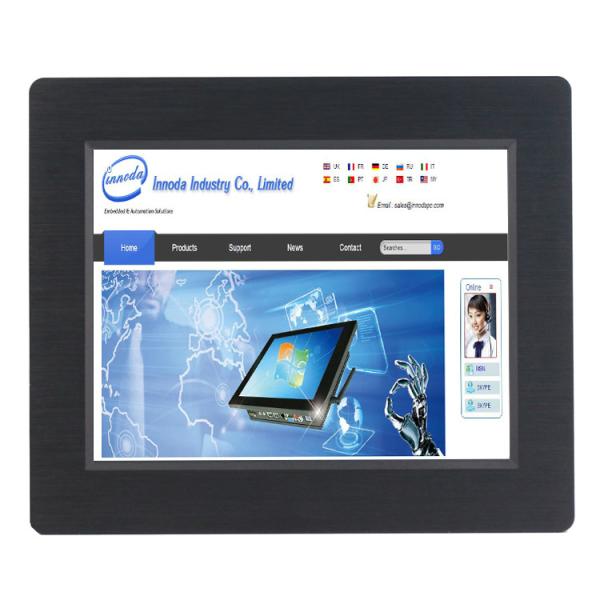

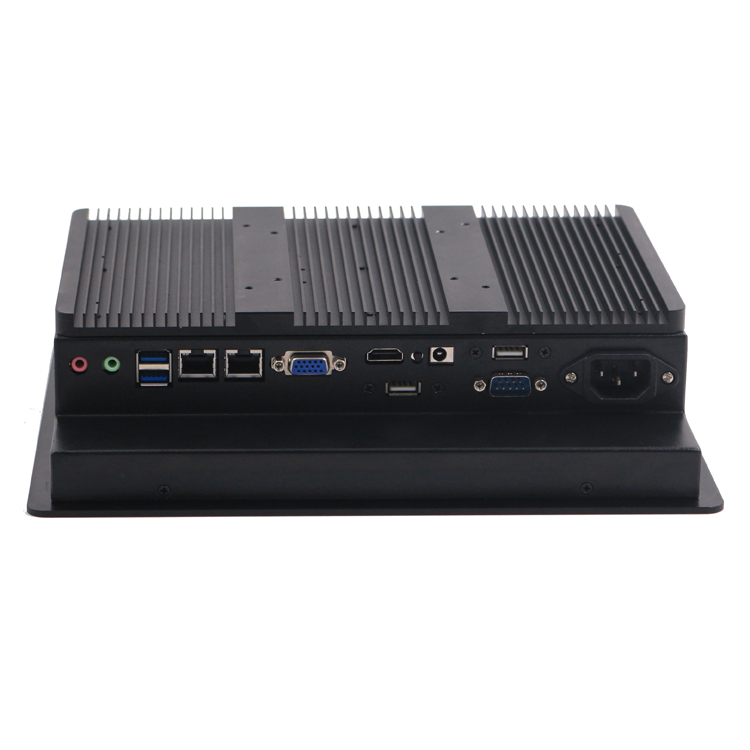

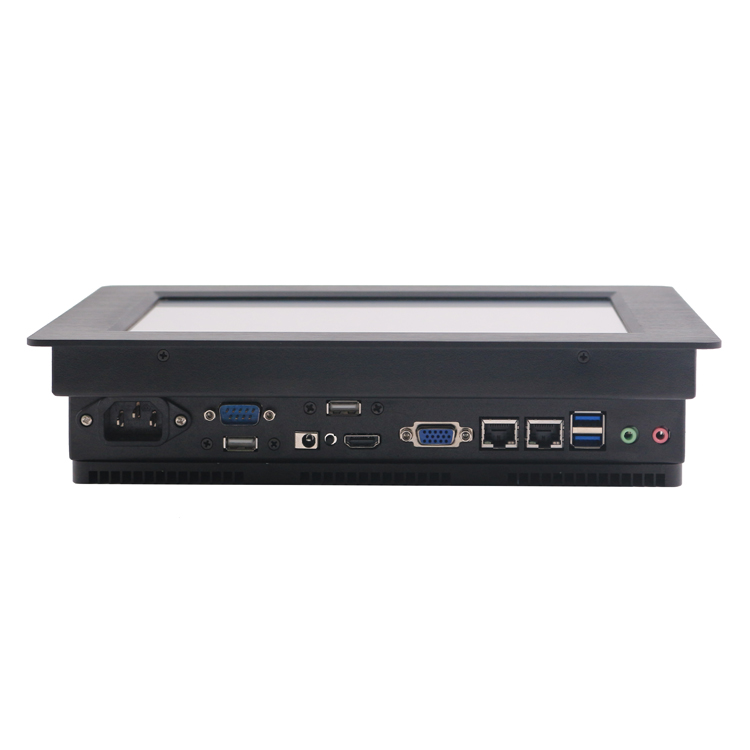

Detailed Image
Industrial PC Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least
13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
5. No MOQ limited
We can provide sample first to test it for the big project.
Any interested, welcome to ask for more information
